Hager AB800 full mortise, standard weight, three knuckle hinge with concealed anti-friction bearing. Size 4-1/2" x 4" (114 mm x 102 mm). For use with medium weight doors or doors requiring medium frequency service.
Specifications
- Model: Hager AB800
- Type: Full mortise, standard weight, concealed anti-friction bearing
- Knuckles: 3
- Size: 4-1/2" x 4" (114 mm x 102 mm)
- Gauge: 0.134
- Hole count: 8
- Screws: 1/2" x 12-24 machine, 1-1/4" x 12 wood
- Material: brass with stainless steel pin (ANSI A2112); US32D is stainless steel with stainless steel pin (ANSI A5112)
- Pin: non-rising removable pin with flush pin and plug
- Hager box quantity: 3
Finishes

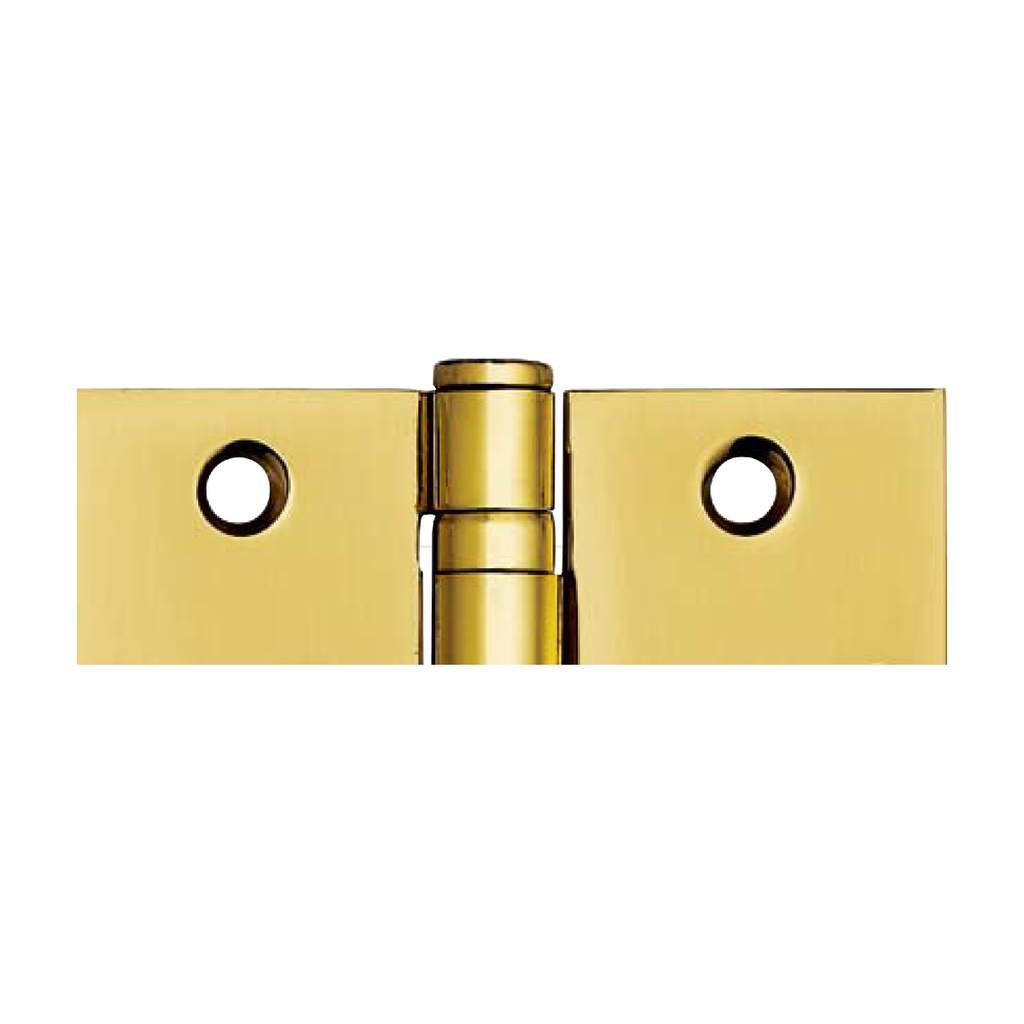

- US3 (605) Bright Brass

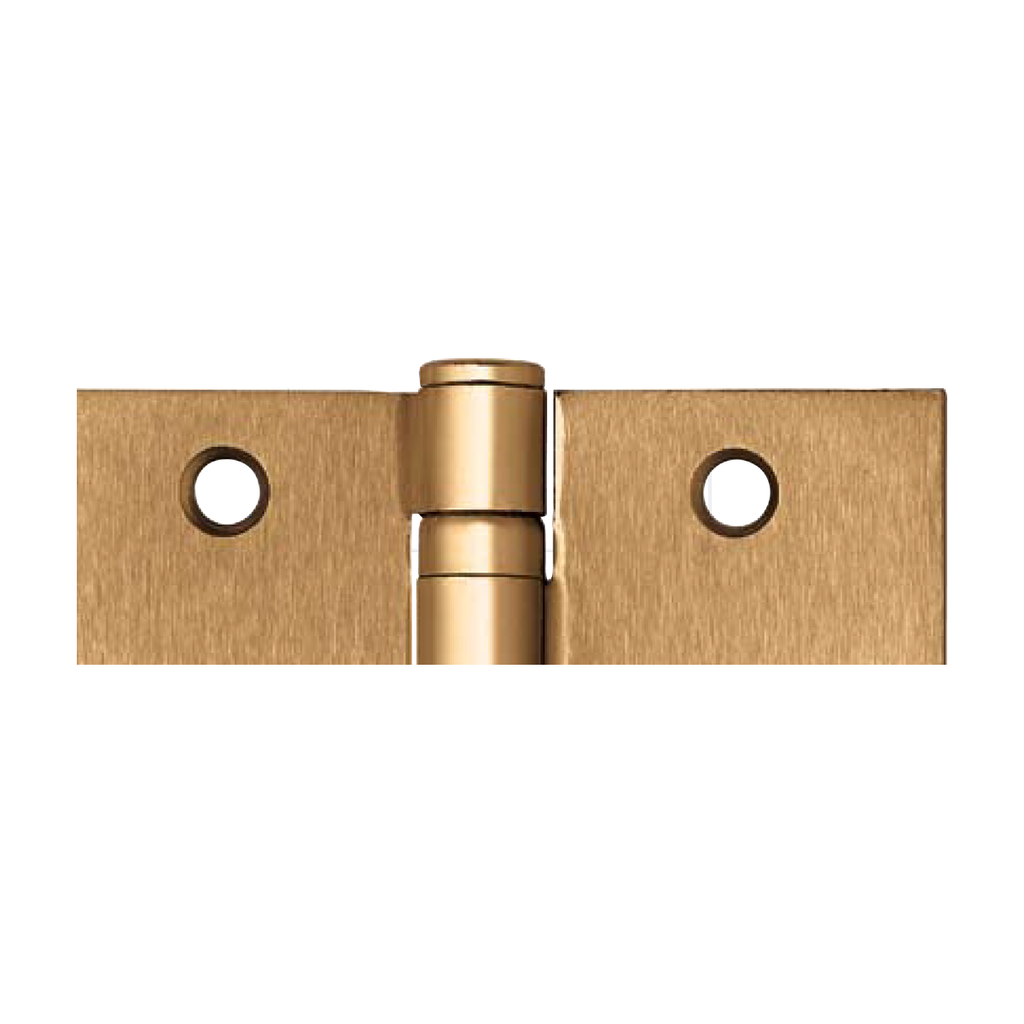

- US10 (612) Satin Bronze

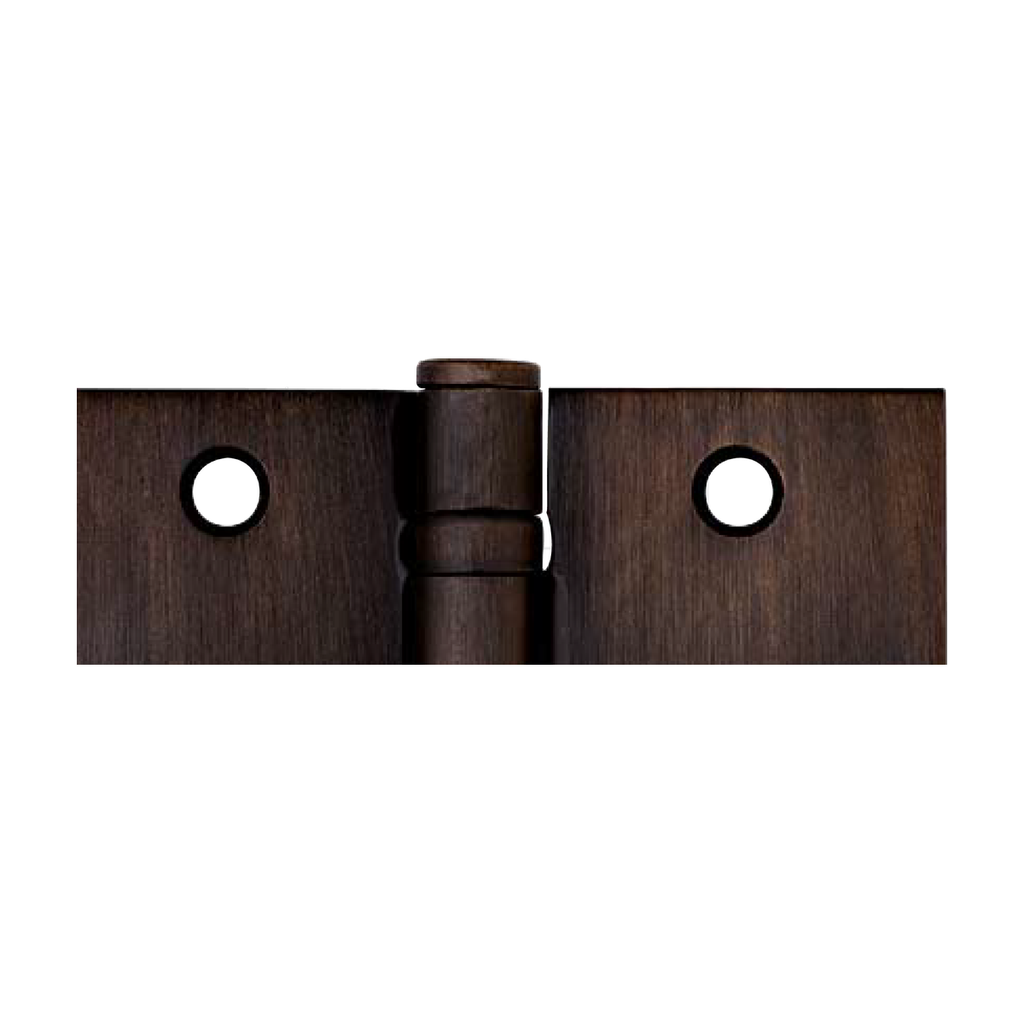

- US10B (613) Antique Bronze, Oiled

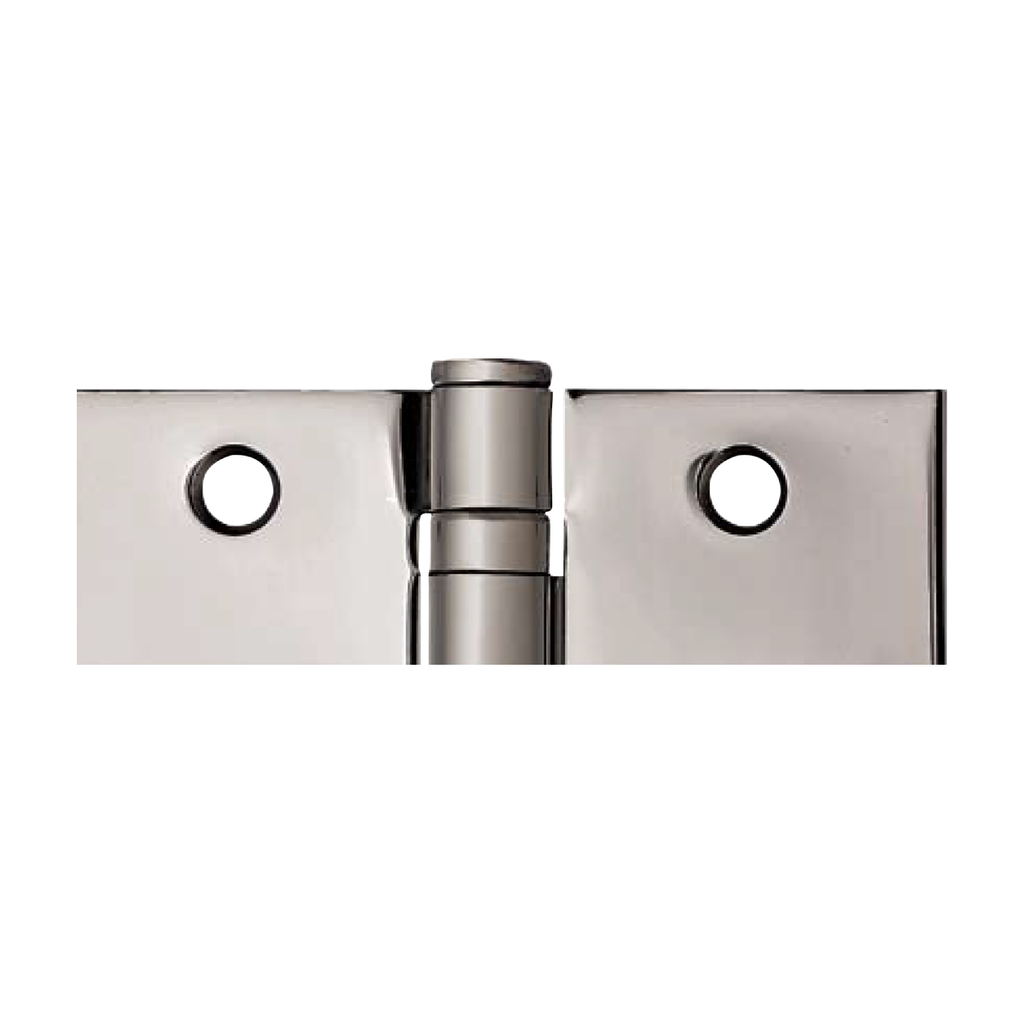

- US26 (625) Bright Chrome

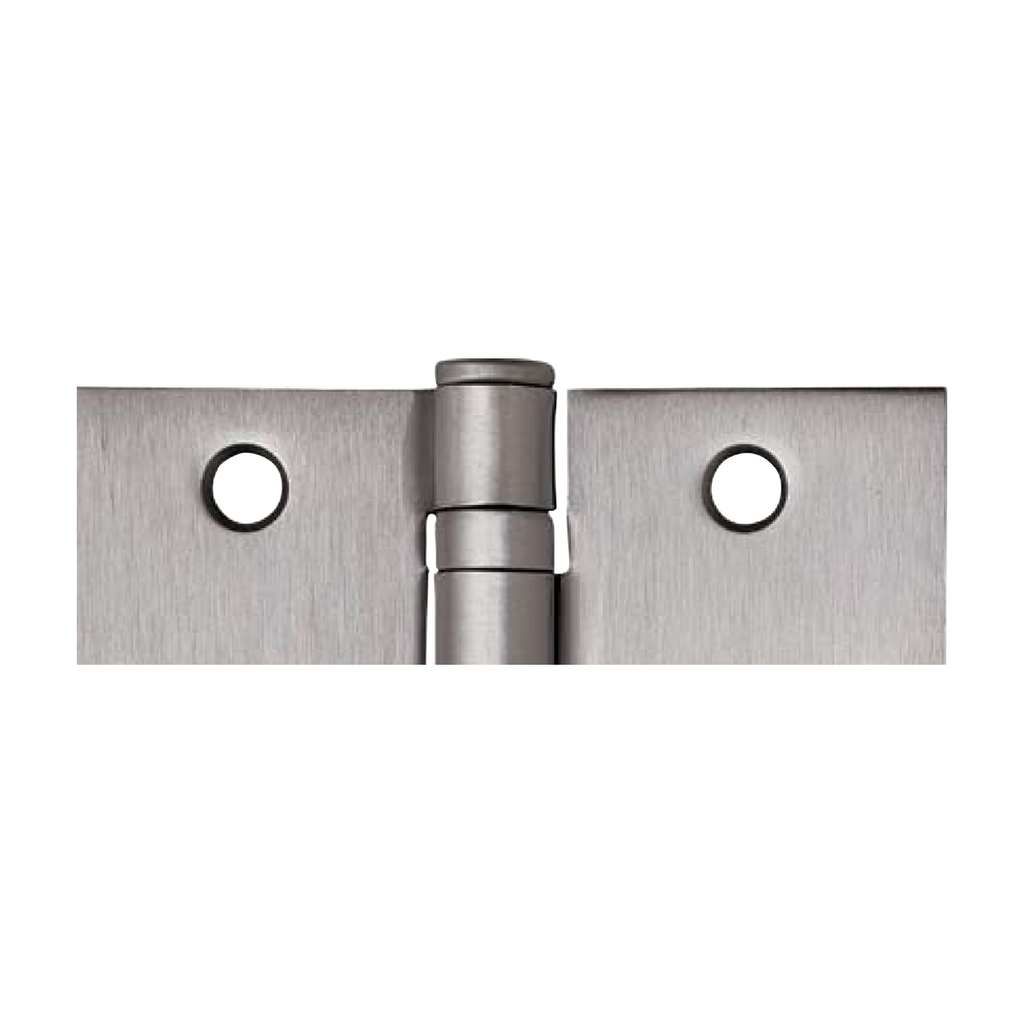

- US26D (626) Satin Chrome

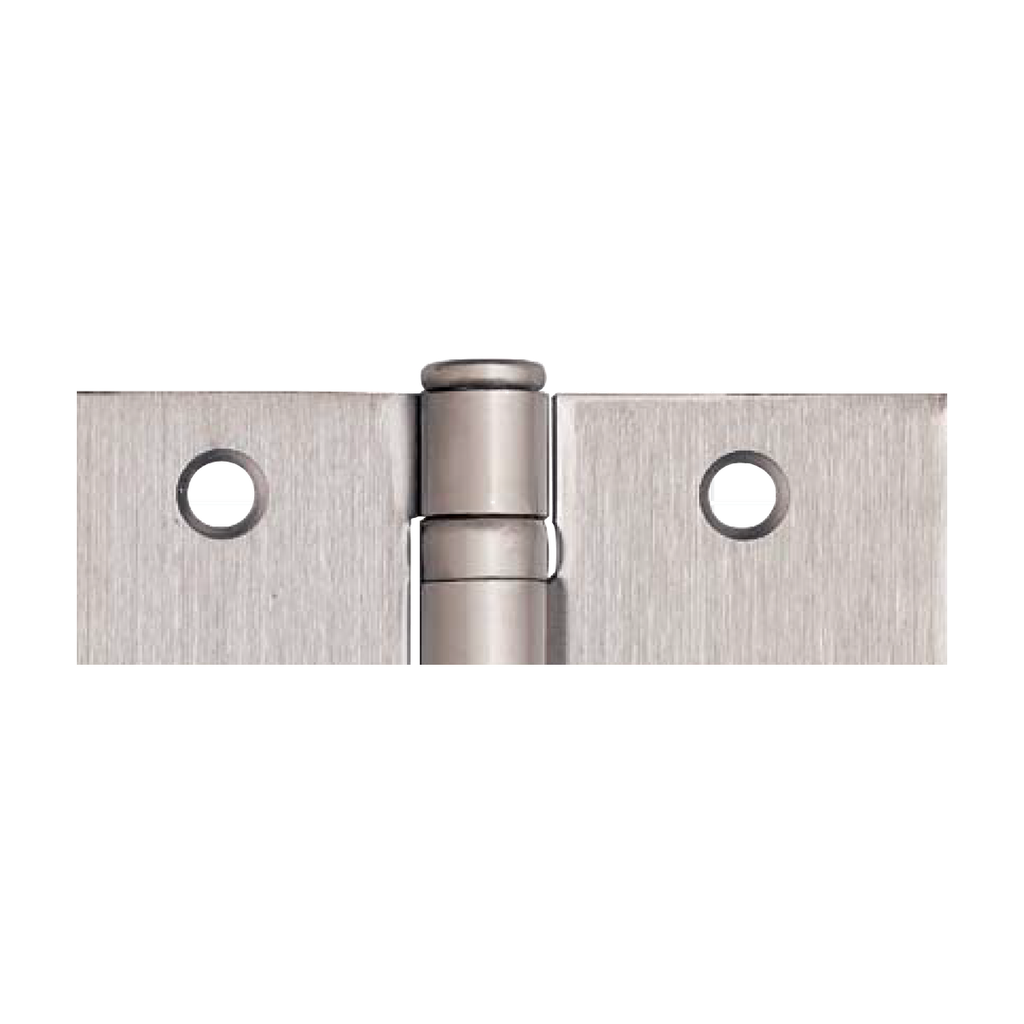

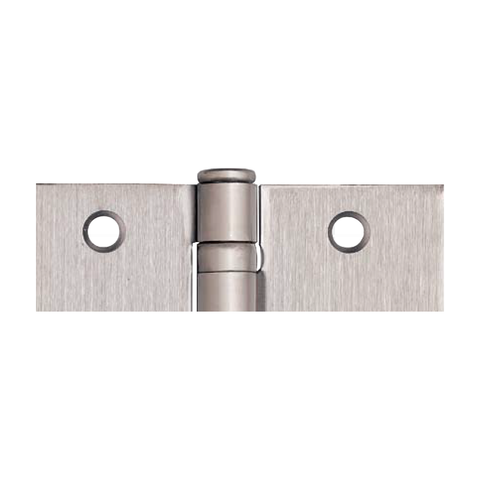

- US32D (630) Satin Stainless Steel

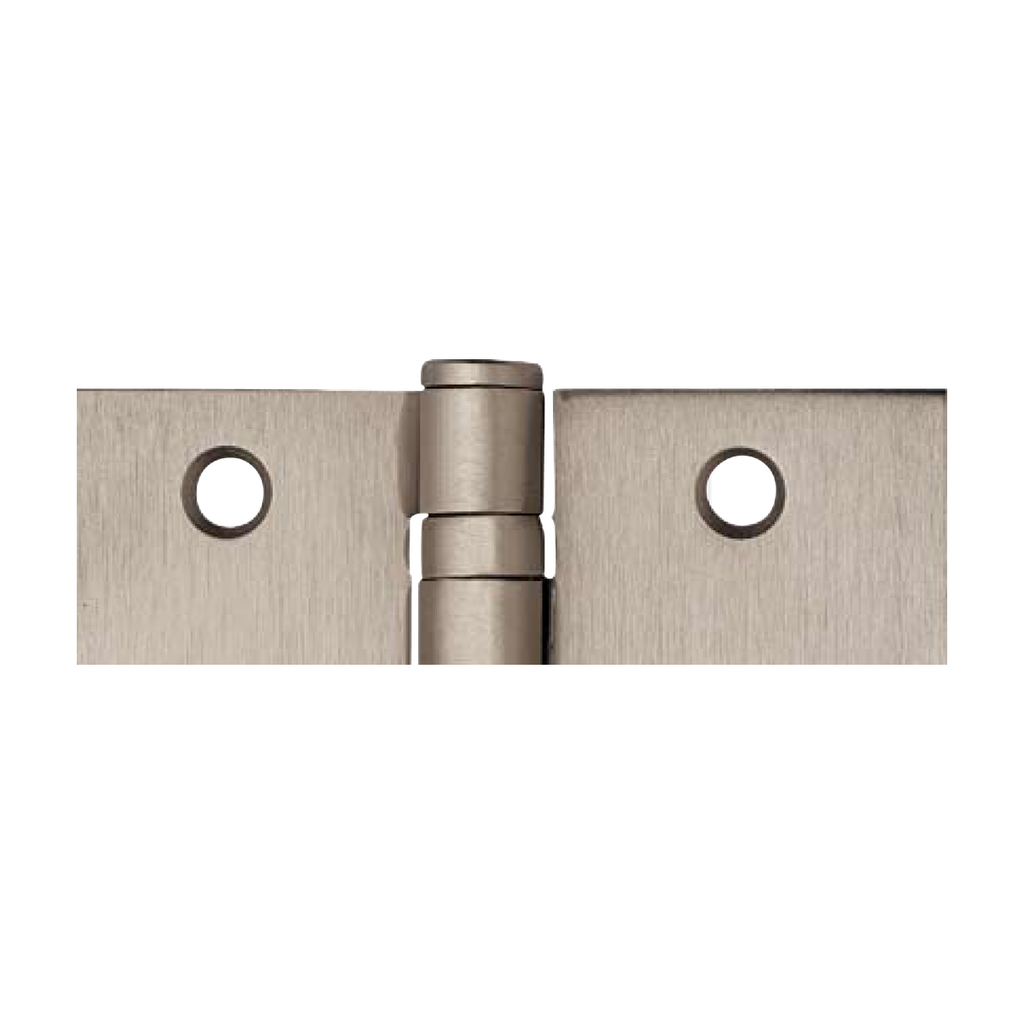

- US15 (619) Satin Nickel
- L1 (693) Flat Black

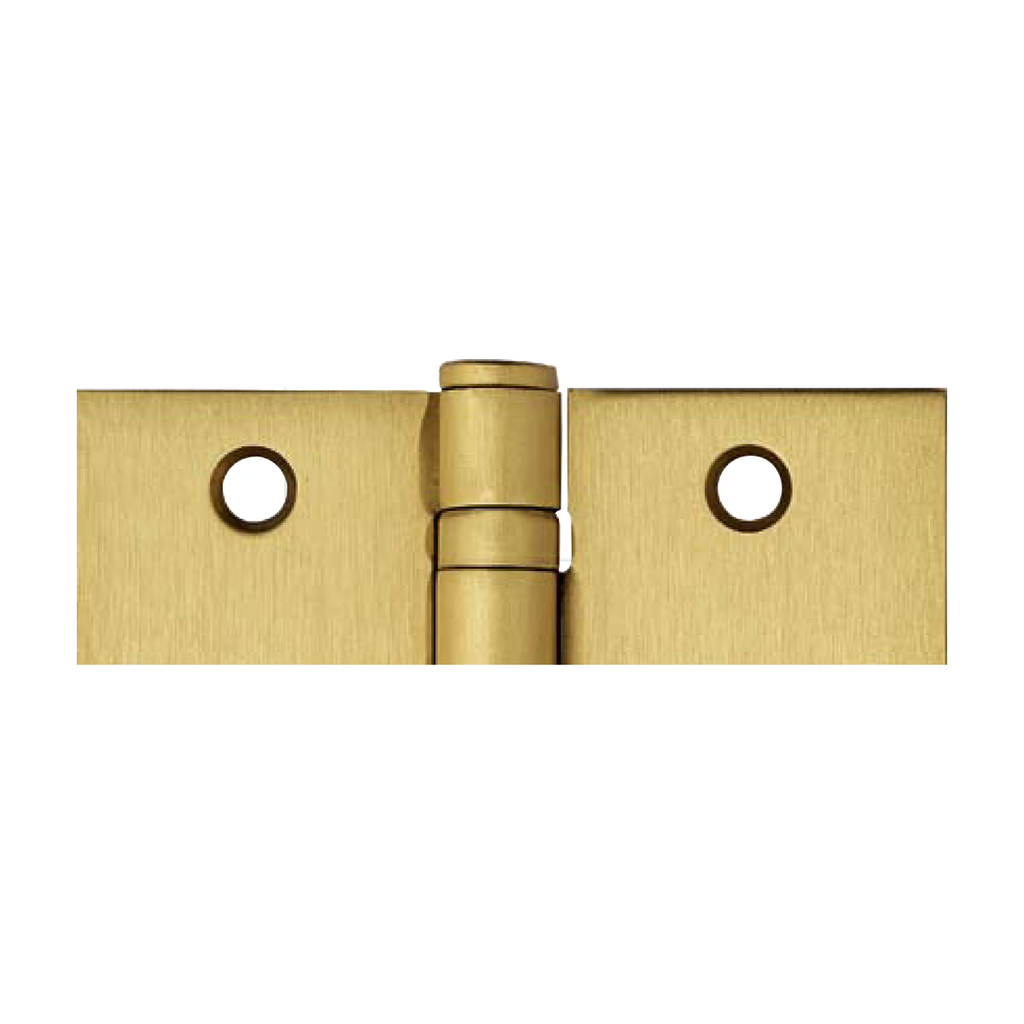

- US4 (606) Satin Brass
US3 Bright Brass: Hager stock # 002371.
US15 Satin Nickel (NRP): Hager stock # 100301056.
Note: US15 Satin Nickel is available as a non-removable pin (NRP) hinge only. Hager stock # 100301056 is the NRP version; there is no standard removable-pin US15 in 4-1/2" x 4".

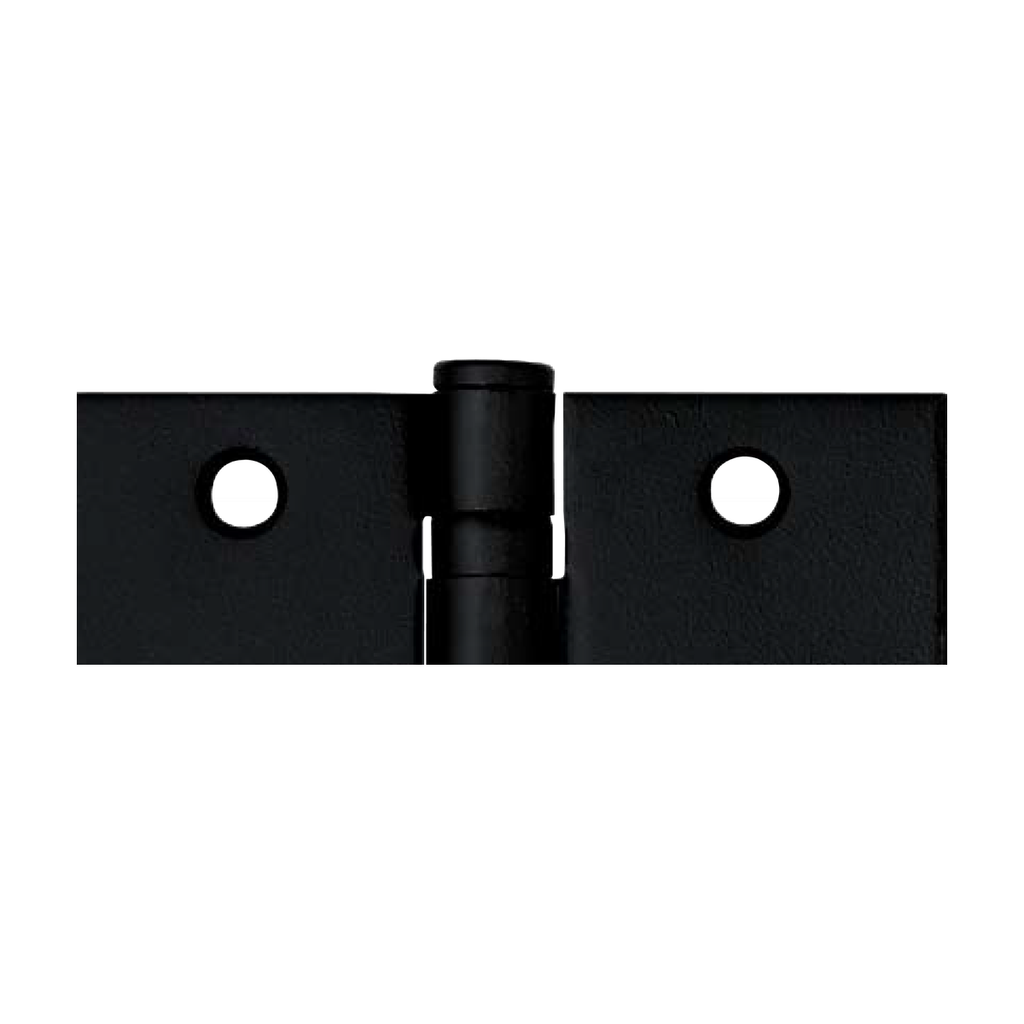

L1 Flat Black: Hager stock # 124134.
US4 Satin Brass: Hager stock # 035934.
